Besides, SAR operations, LIDAR operations, infrastructure analysis, topographic surveying, border control maritime security etc, this product from Alpha Unmanned Systems is a winner

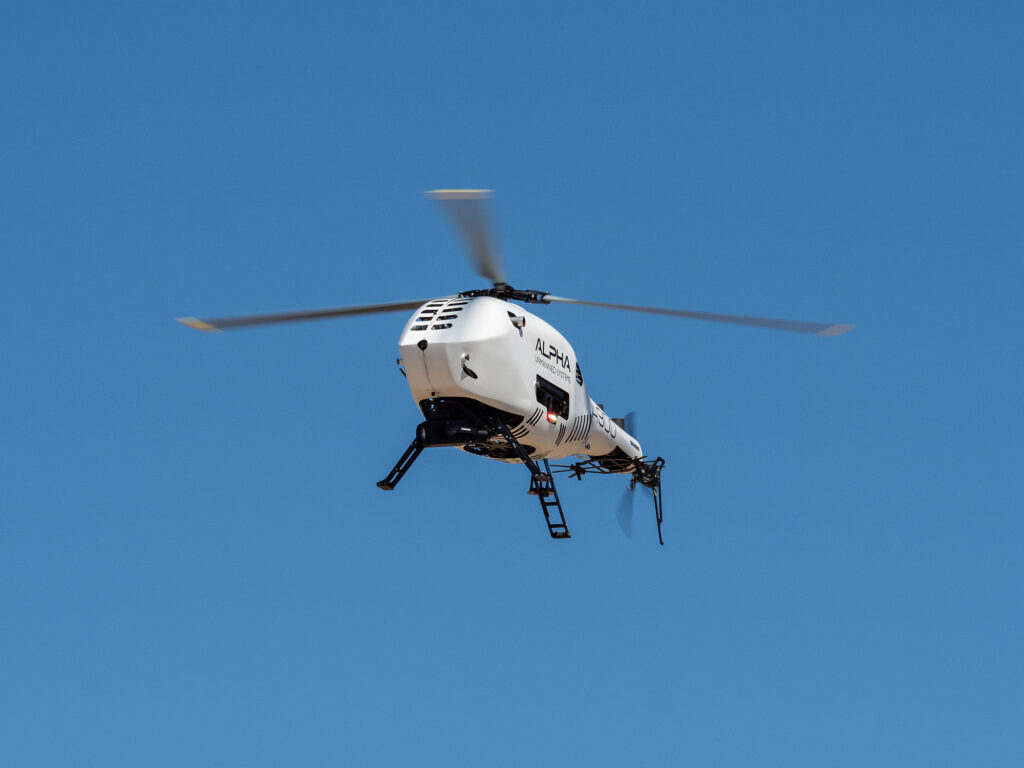

Alpha A900 UAV Helicopter
Alpha’s newest fuel-powered helicopter UAV. Built STANAG-compliant to meet Maritime Security requirements (rapid deck deployment, longer flight time, flotation devices, etc.)
The robust fuel-powered UAV Alpha 900 is engineered for challenging environments. Remarkably smart and versatile, it is a highly valuable operative resource. Weighing in with a MTOW of less than 25kg, it is designed and manufactured STANAG 4738 compliant for a range of applications in challenging conditions.
The A900 can be used for many missions, from ISR and border control to infrastructure inspections, communications relays, advance observation and as aerial targets. The A900 has an onboard generator that provides up to 150W of power for power-intensive payloads, a radar altimeter, navigation lights and technology designed to enable navigation in GPS denied environments.
APPLICATIONS
Alpha UAV helicopters are the ideal support tool for the Coast Guard and Navies. Heavy fuel powered, STANAG compliant, day and night operations.
Maritime Surveillance
Alpha technology complements other fixed and mobile surveillance systems. Real time target tracking, EO/IR sensors, 100km range. Alpha’s platforms can cover large distances and hover for significant times.
Border Control
The ability to obtain data immediately from the field can be critical to your mission. Our technology is designed to provide the very best in unmanned surveillance, whether of borders, infrastructure, or subjects/objects of interest.
SAR Operations
Provide your operatives with a reliable and highly autonomous tool to conduct search and rescue operations quickly and safely in any environment.
Target Systems
Current and evolving threats require target simulation of manned helicopters. Alpha’s platforms are effective and efficient VTOL targets.
Infraestructure inspection and Mapping
Electric Transmision lines, Bridges, Critical facilities, Railways… require visual inspections. Alpha’s platforms fly the most advanced sensors available including LiDAR and others.

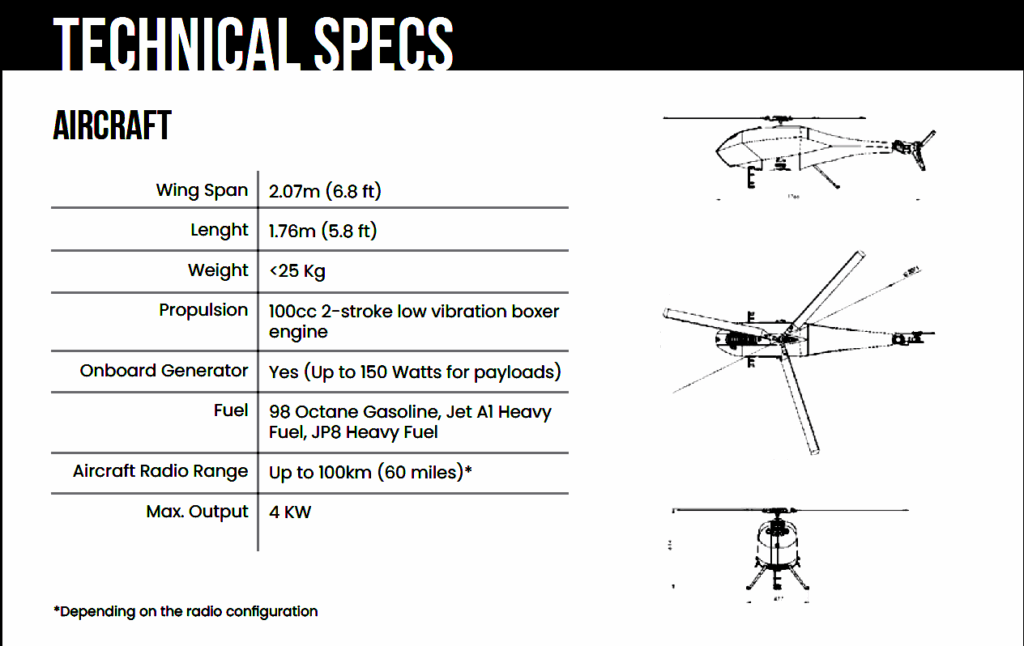

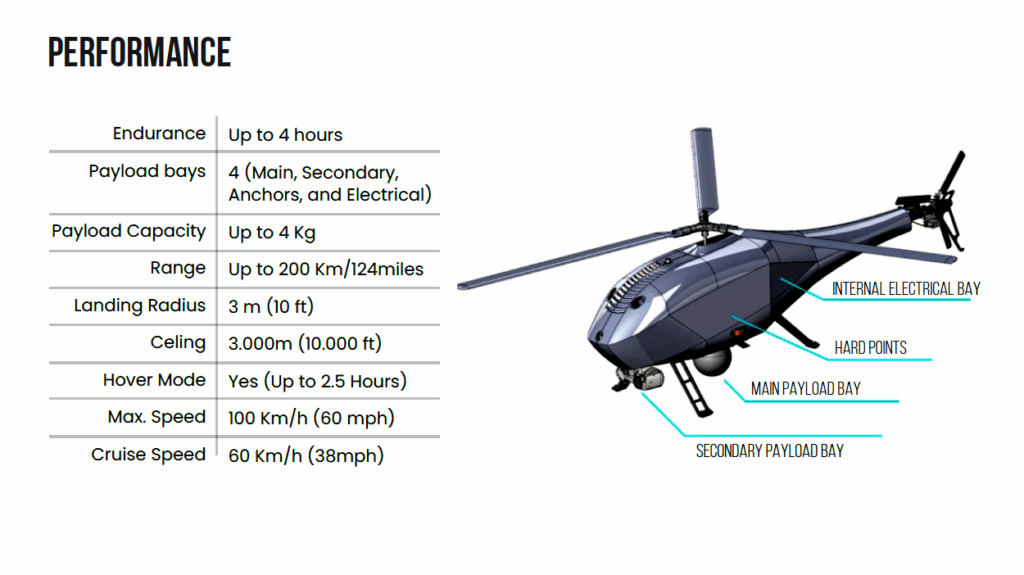

TOP SPECS
Sea State 5 (Beaufort Scale)
Landing with Pitch and roll up to 10º

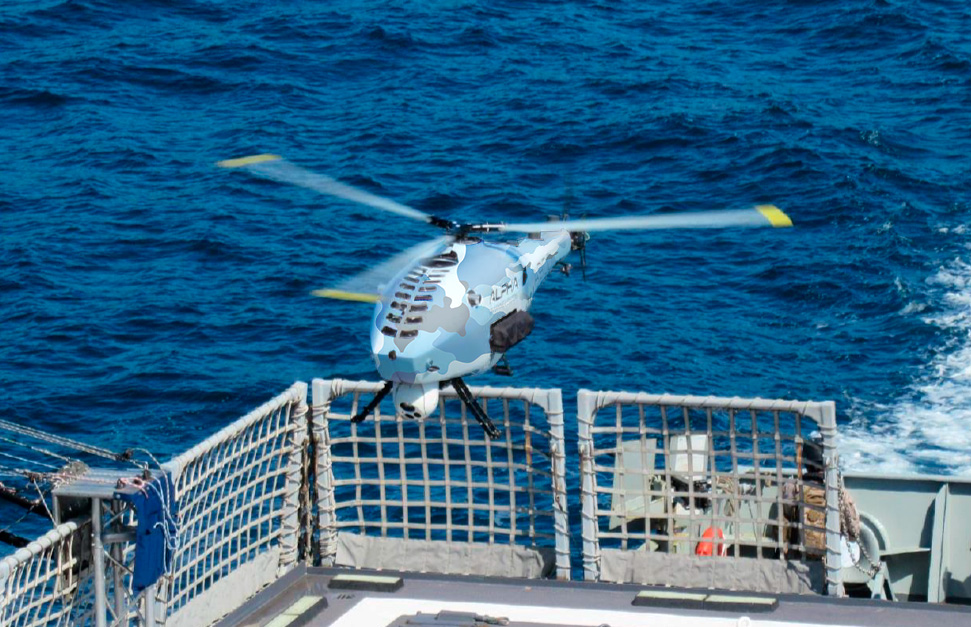

Automatic Landing on moving vessels
Autorotation and Flotation devices
CERTIFIED QUALITY
Alpha Unmanned Systems adheres to aviation standards and design procedures. The company is an ISO9001 certified company with an integrated holistic ERP system to ensure maximum traceability of all company processes and components. The A900 airframe and systems architecture have been designed to comply with STANAG 4738.
Its critical systems have been tested to withstand demanding conditions, such as the autopilot, which is MIL-STD 416F and 810F, and the servos, which comply with EN61000 and IP64 standards.
They have a MTBF of more than 1000h, calculated by Weibull analysis and tested up to 3000h endurance.
Using these standards and the AMCs and GMs provided by the European Union Aviation Safety Agency (EASA), products designed and manufactured by Alpha Unmanned Systems are suitable for certification by both civil and military authorities.
